Navi312 3D 1x2 HDMI Splitter



NaviTech 3D 1x2 HDMI splitter. Navi312 distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data centre control, information distribution, conference room presentation, school and corporate training environments. It supports 3D.



Features

Input Video Signal

 0.5 -1.0 volts p-p

 Input DDC Signal

 5 volts p-p (TTL)

 Max Single Link Range

 1920X1080, 1080P; 3D 1080P / 24HZ

 Output Video

 HDMI 1.3 + HDCP1.0/1.1/1.2

 DVI

 480p/576p/720p/1080i/1080P (50HZ; 60HZ); 3D 1080P / 24HZ

 Resolutions DTV/HDTV

 480p/576p/720p/1080i/1080P(50HZ; 60HZ); 3D 1080P / 24HZ

 Operating Frequency

 Up to 225MHz

 EIDI Duration

 4 seconds

 Power supply

 DC 5V



 Max. cable extension

 10 meters by 28AWG HDMI cable; 15 meters by 26AWG HDMI cable



Connection Image

Interface Specification

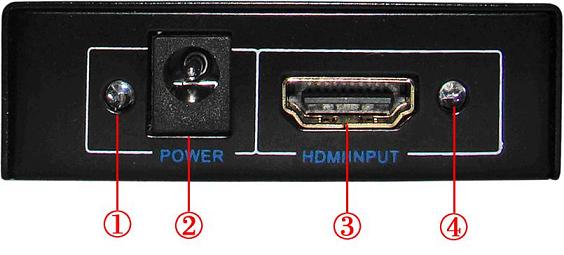

(1)Power LED

 (2)Power Supply Socket

 (3)HDMI Input

 (4)LED of HDMI Input

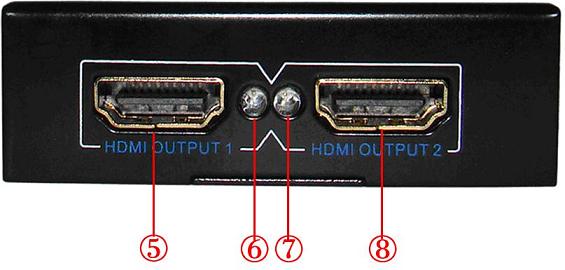

 (5)HDMI 1 Output

 (6)LED of HDMI 1 Output

 (7)LED of HDMI 2 Output

 (8)HDMI 2 Output

Package Info:



 Weight (kg)

 Dimension (LxWxH cm)

 Product

 0.105

 6X6.4X2

 Gift Box(1pcs with accessories and gift box)

 0.265

 12.4X10.3X7

 Carton Box (50pcs)

14.25

 44X34X39



FAQ

1). The splitter does not appear to be functioning.
Check if the LED lights, the power supply and cables is well connected and in good condition. Make sure the length of the cables is within the MAX supported length of this splitter. Lastly, please try to connect the input device to the display directly by cables less than 3 meters to see if it display normally.

2). If the MAX. resolutions of the two displays are not the same, what resolution will be output?
The splitter will output at the lower resolution.
