Navi352 VGA + Audio to HDMI 1080P Scaler



This converter is designed to take video and audio signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p.

Plug and play, no software is needed. Great for connecting the VGA video output of your computer or media server and integrating it into a new digital HDMI Home Theatre System.

Features

- Up-scales VGA to HDMI 720P or 1080P;


-  Supports VGA Input: 640x480@60/75Hz, 800x600@60/75Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz,

   1280x960@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1920x1080@60Hz.

   (Recommended input resolution: 1024x768@60Hz )


- Supports HDMI Output: 720P/60Hz, 1080P/60Hz;


-  Auto-store setting of output resolution


-  Product Dimension: 119 x 74 x 23 mm (L x W x H)

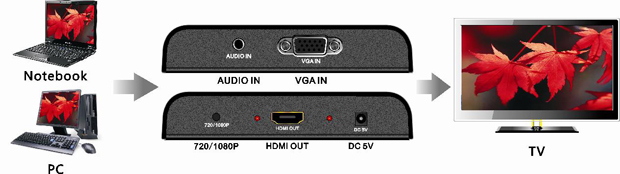

Connection Image

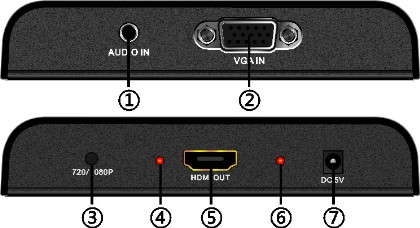

Interface Specification

 1.  3.5mm Audio input

2. VGA input

3. Select ouput resolution at 720P or 1080P

4. Output resolution indicator: Red (720P/60Hz), Green (1080P/60Hz)

5. HDMI output

6. Power indicator

7. DC5V Power input
