Navi363 AV / Composite / S-Video + Stereo Audio to HDMI 1080P Converter



Navi363 RCA Composite video and S-video to HDMI Scaler takes either Composite Video or S-Video as input and converts it to HDMI 1080P.

It allows older analog devices to be integrated into HD home theater system.

Features

- Input: 1 x Composite Video, 1 x S-Video, 1 x Stereo Audio;

- Output: 1 x HDMI, 1X 3.5mm stereo Audio

- Up-scales Composite Video or S-Video up to full HD 1080p;

- HDMI output is optional at 720P/60Hz or 1080P/60Hz;

- Input video systems - NTSC and PAL is automatically detected and adjusted;

- Composite Video and S-video can stay simultaneous connection, and to be selected as the input them by the switch button

- Settings of input signal and output resolution is auto-stored when power on again;

- Composite Vide and S-Video Share the same audio input.

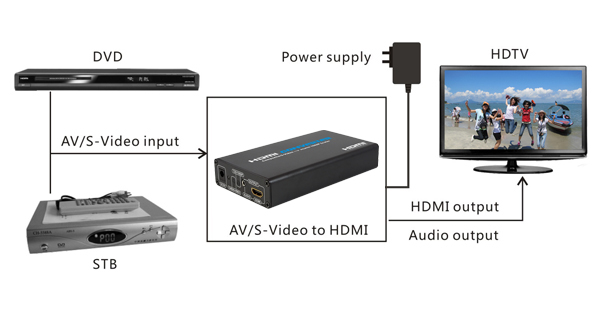

Connection Image

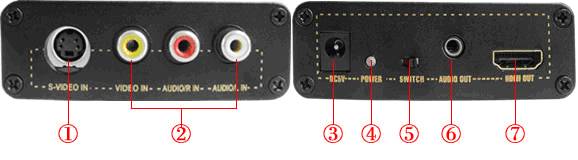

Interface Specification

 Item

 Spec.

 (1)S-VIDEO IN

 To connect S-Video source in

 (2)VIDEO IN, AUDIO R IN, AUIDO L IN

 To connect Composite Video source in by a piece of A/V cable

 (3)DC/5V

 To connect DC 5V power supply

 (4)POWER

 Power LED

 (5)SWITCH

 Switch to left: Composite Video Input; Switch to Right: S-Video input

 (6)AUDIO OUT

 To connect earphone or sound box

 (7)HDMI OUT

 To connect HDMI display



Accessories & Package

 Package Info:

Item

Qty

Pic

Power supply

1 pcs

User manual

1 pcs

Package Box

1 pcs



 Weight (KG)

 Dimension (LxWxH cm)

 Product

 0.265

 15.6X8.4X2.8

 Gift Box (1pcs with accessories and gift box)

 0.552

 25X17.5X7

 Carton Box (20pcs)

 12.04
