Navi381 HDMI to AV (Composite / S-Video + Stereo Audio) Converter
Navi381 is designed to convert HDMI to either Composite Video or S-Video. It allows the devices only equipped HDMI output to be connected to CRT TV.
It is mostly applied in AV equipment testing, CCTV monitory, HD PC to TV, DV to Projector, Education, business promotion, etc.
|
Input HDMI Resolution |
480p (60Hz), 576P (50Hz), 720p (50Hz / 60Hz), 1080i (50Hz / 60Hz), 1080p (50Hz / 60Hz) |
|
Output Signal |
Composite Video (1.0Vpp), S-Video(Y:1.0Vpp / C:0.3Vpp) Composite Video and S-Video are not able to be displayed simultaneously |
|
Output Video Systems |
PAL/NTSC |
|
Output Video Impedance |
75Ω |
|
Power Supply |
DC 5V |
|
Working Temperature |
-25~75°C |
|
Working Humidity |
10%-60% |
|
Product Dimension |
118*84*28mm (L*W*H) |
Application:
-Testing for HD products factory;

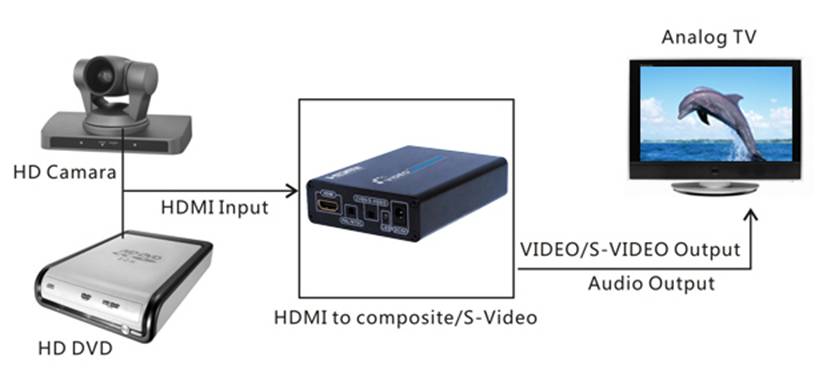

-Security monitor, display HD CCTV Camera, HD DVR on an Analogue TV.
-Family use. When one has a HD device, but the TV is Analogue.
-HDMI-interfaced laptop to Analogue TV for education, business presentation, commercial promotion, conference, exhibition, etc

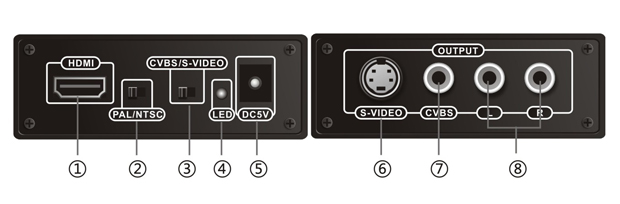

1). HDMI In: To connect HD device sources
2) PAL/NTSC Switch: select PAL or NTSC
3). CVBS/S-Video Switch: Select Composite Video or S-Video as output
4). LED: Power indicator
5). DC 5V: To connect DC 5V power supply
6). S-Video Out: S-Video output
7). CVBS Out: Composite Video output
8). L/R: Audio L/R output
|
Item |
Qty (pcs) |
Remark |
|
Power Supply |
1 |
DC 5V |
|
AV Cable |
1 |
|
|
S-Video Cable |
1 |
|
|
User Manual |
1 |
|
